• Electrolytic Galvanizing Line
• Hard Chrome Plating
• Decorative Chrome Plating
• Chrome-Ⅲ-Baths
• Precious Metals Plating
• Electro-tinning
• Steel cord plating
• Wire and Tube plating
• Electro-painting
• Electro-phosphating

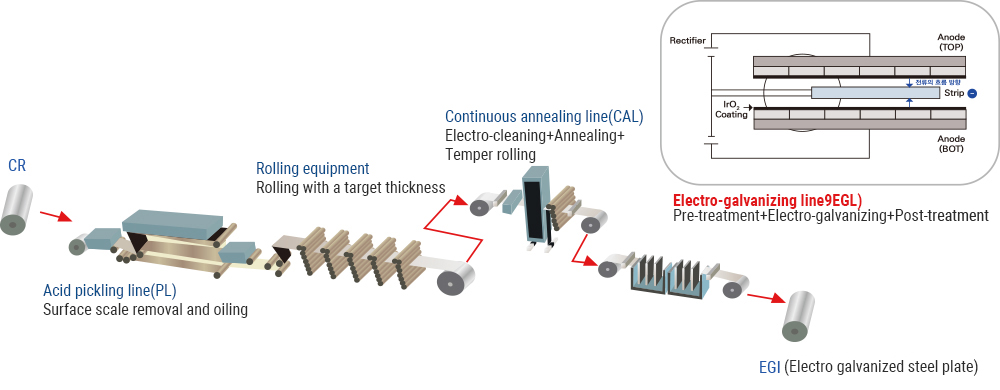

Electrolytic Galvanizing Line (EGL)

Electrolytic Galvanizing Line (EGL) means a process of supplying a current to zinc sulfate or zinc cyanide solution and applying a coat of zinc onto a cathodic steel product in an effort to improve the corrosion resistance and coating ability of the steel plate surface. An electro-galvanized plate is used for vehicles, home appliances, light industry, and other industries, featuring excellent corrosion resistance, processability, welding ability, and coating ability. Electro-galvanizing products include various kinds of coated products, such as single-coated, double-coated, or differential-coated one. In addition, different after-plating treatment ways, such as passivation, phosphate treatment, fingerprint protection can be applied to such products. Our company performs a direct Pt or Ag plating process.

• Copper Foil Production
• PCB Electroplating
• Wafer Electroplating
• Reel-to-reel-plating
• Aluminum Anodising(Cathodes)

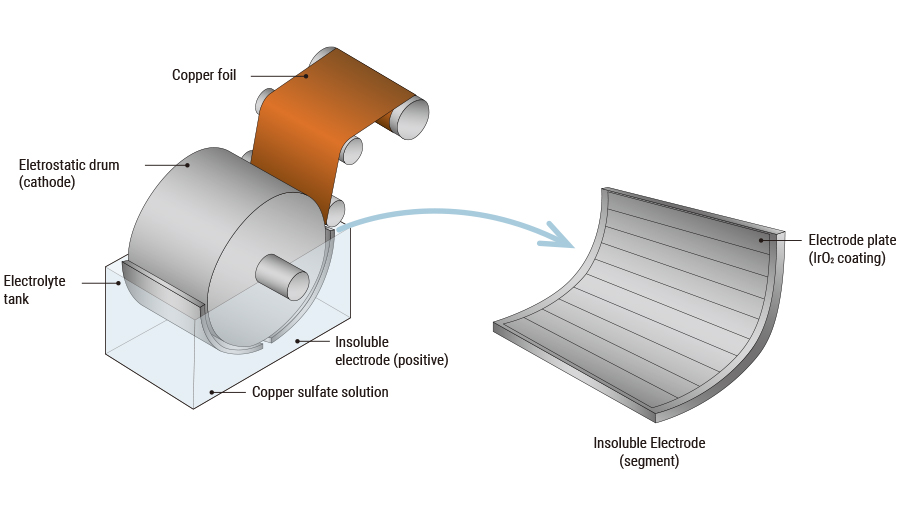

Copper Foil Production

Electrodeposited copper foil is a paper-like thin Cu foil. It is produced mainly in the way of melting copper with sulfuric acid (electrolysis) through electro-plating and applying it onto a titanium drum. Copper foil is an essential material in the electronic industry, especially 5G industry. Over the last several years of the rapid technology innovation, high-quality copper foil has largely been demanded by various electronic businesses. In the global trend of pure energy, electric vehicles (EV) draw a lot of attention. As lithium-ion batteries, the key to EVs, use copper foil, the demand for the material is on the sharp rise.

PCB Electroplating

Printed Circuit Board (PCB) is a electronic circuit board developed in the way of fixing electronic parts (e.g., condenser, integrated circuits) onto a printed wire plate and connecting parts with copper wires. The process of coating electronic parts with tin, nickel, gold, etc. thinly is applied to the PCB industry in order to give electrical conductivity. PCB electro-plating anode is a main product and produces the best performance among soluble and insoluble electrodes.

• Ballast Water of ships
• Boron Doped Diamond (BDD)
• Swimming pools
• Anti-fouling
• Metal Recovery
• Anodic Oxidation
• Electrodialysis
• Electrosynthesis
• (In-)Organic Compounds
• Metal Winning Electrolysis
• Marine Wastewater Treatment
• Marine Growth Preventing System

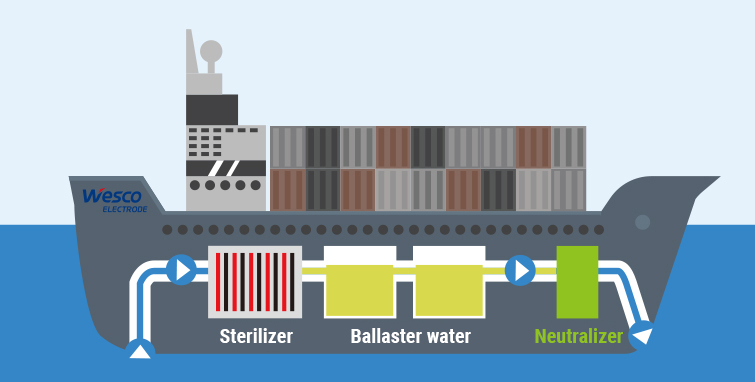

Ballast Water of ships

Ballast water is ship water used to keep sailing with safety and make a ship balanced. Solid objects, such as sand and lead, were loaded on the bottom of a ship. At present, water is used for easy release. Due to the total load limit, it is required to put in or release ballast water differently depending on a freight or passenger ship’s load. Ballast Water Treatment System removes harmful aquatic organisms and pathogenic bacteria of ballast water so as to get them harmless, or prevents their inflow or release.

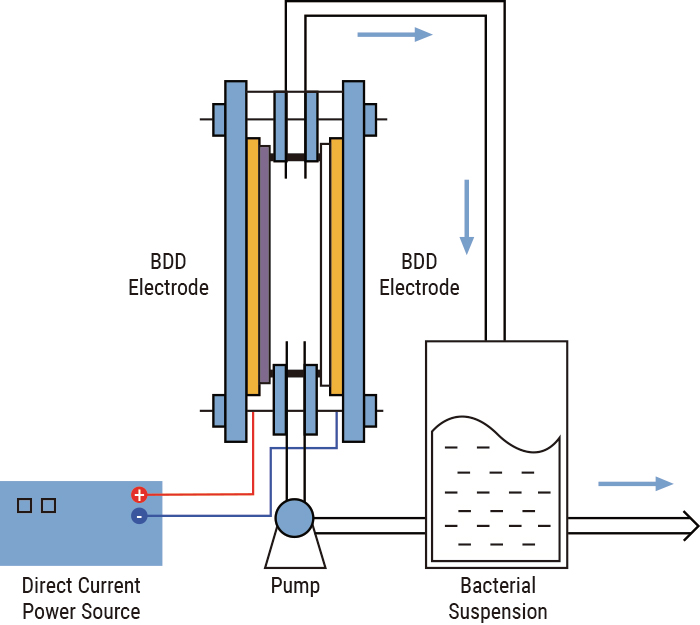

Boron Doped Diamond (BDD)

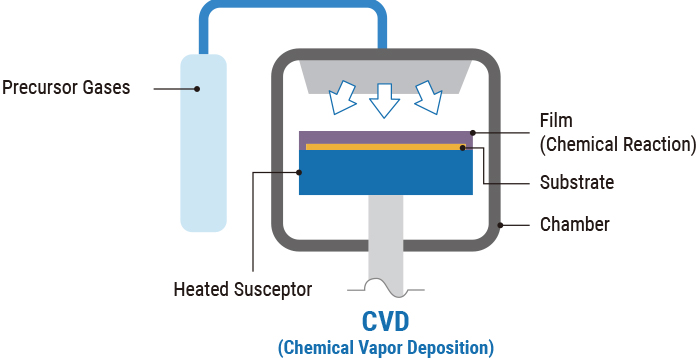

BDD is developed in the way of doping boron over a diamond thin film with the use of diamond (known as insulator) as a conductor and giving the film conductivity. Because conductive BDD electrode has chemical stability, it, unlike a conventional electrode, remains stable in a wide potential region, especially the potential area of jewelry. It draws much attention as the electrode for electrolyte synthesis and water treatment process.

Production Specification

Application areas

Ozone generation, Soil remediation, Non-degradable material decomposition, Production of strong oxidant, Water quality analysis, Dye wastewater-RhB removal, Water sterilization and wastewater treatment, Removal of high COD

Ozone(O₃) Generator Pilot Skid

• Tanks
• Pipelines
• Reinforced Concrete
• Dewatering
• Offshore installations

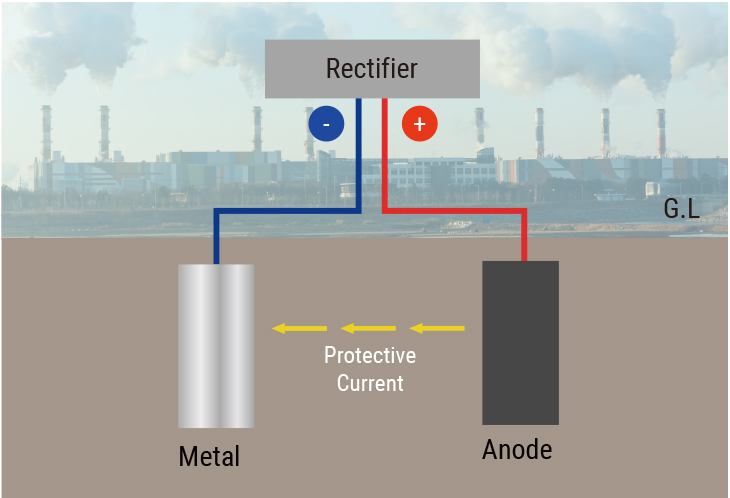

Cathodic corrosion protection is a significant technique used to control the corrosion of a metal through sacrificial anode protection and impressed current method. According to impressed current method, cathode current is supplied to the metal part protected by an external DC power supplier, so that it triggers cathodic polarization to reduce or control completely metal corrosion. Auxiliary anode is used to offer a circuit for current. Given the oxygen generation or chlorine evolution in anode terminal, the corrosion resistance and stability of auxiliary anode are important to the operation of overall cathodic protection system.

Application Areas

Land: the protection for the storage tank of a water heater, the hull of a power plant, pipe line, tank, condenser, the internal protection for pipe line and heat exchanger, buried-type (applied to soil bearing carbon)
Sea: platform and other marine facilities, pier, the external protection for dam and cooling system entry

• Chlor-alkali

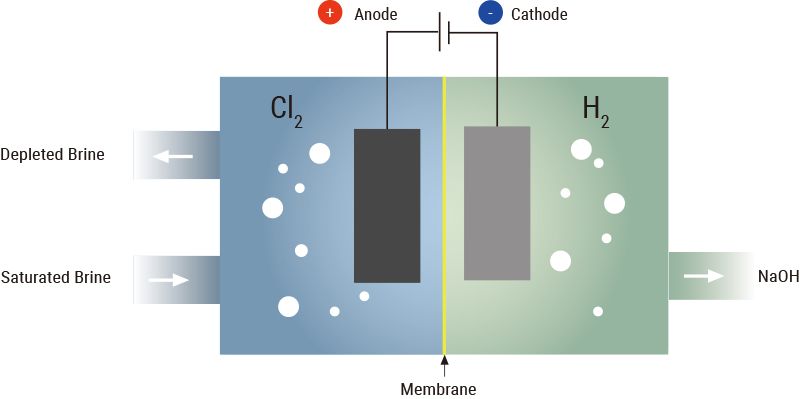

Chlor-alkali (Caustic soda)

Chlor Alkali (CA) industry as the basic inorganic chemical industry is aimed at producing Cl2, NaOH, and H₂through brine electrolysis and thereby manufacturing chlorine derivative and a variety of industrial materials.
